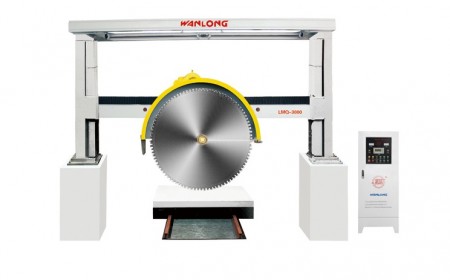

Gantry Cutting Machine LMQ-3000
  • Gantry Cutting Machine LMQ-3000

Gantry Cutting Machine LMQ-3000

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    WANLONG

  • Modification

    Single-blade Stone Cutting Machine

  • Application

    Stone Block Cutting

  • Operations

    Sraight line cutting

  • Processing length

    3400 mm

  • Processing width

    2000 mm

  • Processing height

    1350 mm

  • Motor power

    30 kW

Similar goods

Описание:

The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope

Sliding speed of blade on the crossbeam is adjustable

General properties

  • CNC: -
  • Modification: Single-blade Stone Cutting Machine
  • Number of axes: 3-axis stone Cutting Machine
  • Application: Stone Block Cutting
  • Operations: Sraight line cutting
  • Frame: Gantry-type

Throughtput

  • Processing length: 3400 mm
  • Processing width: 2000 mm
  • Processing height: 1350 mm

Cooling water

  • Water consumption: 6 m3/hour

Additional

  • Lifting system: Hydraulic lifting system

Horizontal working table

  • Working table length: 2000 mm
  • Working table width: 2000 mm

Circular saw

  • Max. quantity of blades: 1 pcs
  • Max. diameter of blade: 3000 mm
  • Recommend saw blade thickness: 8 mm

Power Supply

  • Motor power: 30 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 7000 mm
  • Overall width: 4700 mm
  • Overall height: 6000 mm
  • Weight: 12000 Kg
