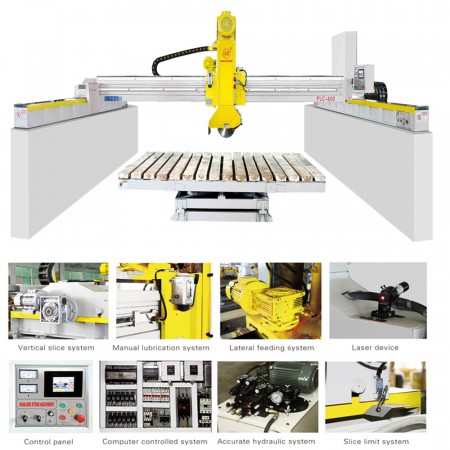

Bridge Cutting Machine PLC-600
  • Bridge Cutting Machine PLC-600

Bridge Cutting Machine PLC-600

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    WANLONG

  • Modification

    Single-blade Stone Cutting Machine

  • Application

    Stone Slab Cutting

  • Processing length

    3200 mm

  • Processing width

    2000 mm

  • Processing height

    180 mm

  • Motor power

    15 kW

Similar goods

Описание:

PLC-400 slab cutting machine  is adopts for slab processing

Machine has PLC Control System, Imported Frequency converter, Precise Signing Laser  for automatic function and guarantee its precise and stable cutting.

There are model PLC-400 and PLC-600 available to your choice.

General properties

  • CNC: +
  • Modification: Single-blade Stone Cutting Machine
  • Number of axes: 3-axis stone Cutting Machine
  • Application: Stone Slab Cutting
  • Operations: Sraight line cutting
  • Frame: Bridge-type

Throughtput

  • Processing length: 3200 mm
  • Processing width: 2000 mm
  • Processing height: 180 mm

Cooling water

  • Water consumption: 4 m3/hour

Additional

  • Lifting system: Hydraulic lifting system

Horizontal working table

  • Working table length: 3200 mm
  • Working table width: 2000 mm
  • Table rotating degree: 90 ° — 360 °
  • Working table titling degree: 0 ° — 85 °

Circular saw

  • Max. quantity of blades: 1 pcs
  • Min. diameter of blade: 350 mm
  • Max. diameter of blade: 400 mm

Power Supply

  • Motor power: 15 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 6000 mm
  • Overall width: 5000 mm
  • Overall height: 2800 mm
  • Weight: 6000 Kg
