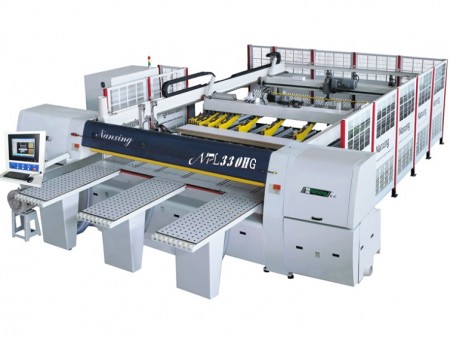

Computer Panel Saw NPL330HG
  • Computer Panel Saw NPL330HG

Computer Panel Saw NPL330HG

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    NANXING

  • Modification

    Beam saw

  • Max. cutting length

    3300 mm

  • Max. cutting height

    120 mm

  • Saw carriage backward speed

    100 m/min

Similar goods

Описание:

Electronic Panel Saw model NP280FG​

Features:

  • Maximum cutting thickness 120mm;
  • Rear feeding with heavy duty hydraulic lift;
  • High cutting efficiency and labor work saving due to utilization of rear feeding and cutting in front;
  • Use of IPC together with Nanxing control system managing data well for production;
  • Nanxing optimizing software for best utilization of boards;
  • Two side aligners to ensure cutting precision;
  • Front air float working table for transferring boards smoothly and prevent any scratches on panels.;
  • Suitable for production required mass cutting.



General properties

  • Modification: Beam saw
  • Max. cutting length: 3300 mm

Sliding table

  • Saw carriage forward speed : 80 m/min
  • Saw carriage backward speed : 100 m/min

Main saw

  • Max. cutting height: 120 mm
  • - tilting: 0 °
  • Main saw diameter: 460 mm
  • Main saw spindle speed: 3910 rpm

Scoring saw

  • Scoring saw diameter: 180 mm
  • Scoring saw spindle diameter: 30 mm
  • Scoring saw speed: 4150

Power Supply

  • Voltage: 380 V
  • Phase: Three-phase
  • Current frequency: 50
  • Main saw motor power: 35.5 kW

Overall dimensions

  • Overall width : 6550 mm
  • Overall length : 9200 mm
  • Overall height: 2020 mm
  • Weight: 7500 Kg
