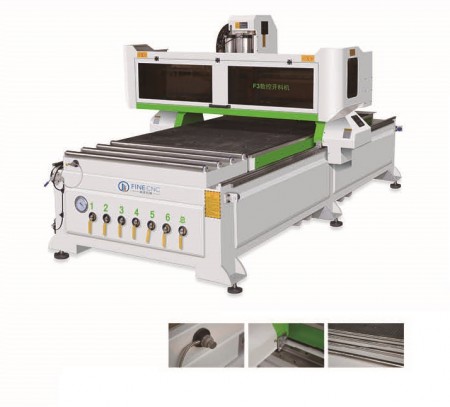

CNC wood punching and cutting machine F3
  • CNC wood punching and cutting machine F3

CNC wood punching and cutting machine F3

Production country: China

Cost in place: Moscow

Выберите город:

1 793 917 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    FINECNC

  • Size

    Big-size CNC router

  • Milling/routing materials

    Wood, Plastic, Soft metal

  • Spindle speed

    0 rpm — 18000 rpm

  • Spindle power

    6000 W

  • Dust collector

    +

Similar goods

Описание:

CNC wood punching and cutting machine F3

CNC router can be used in following industries:

  • Building Industry (  Architectural Decoration Elements, Kitchen Cabinet & Door, Facades & Window, Furniture & Household Appliance, Column & Stairjamb)
  • Sign& Advertising ( Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)
  • Models & Prototyping
  • Plastics & Composites ( ACP, ACM and solid surface material etc )
  • Non-ferrous metals & Marine



General properties

  • Size: Big-size CNC router
  • Functions: Cutting, Engraving , Routing
  • Milling/routing materials: Wood, Plastic, Soft metal
  • Engraving materials: Wood, Plastic, Soft metal
  • Number of axis: 3 Axis-CNC Router

Spindle

  • Number of Spindels: 2 pcs
  • Spindle speed: 0 rpm — 18000 rpm
  • Spindle power: 6000 W
  • Working precision: 0.02 mm
  • Repositioning accuracy: 0.05 mm

Options

  • Auto Tool Changer (ATC) : -
  • The control system: NC studio controller
  • Water tank: -
  • 4th Axis Rotary Table: -
  • Spindle cooling method: Air cooling
  • Mist cooling system: -
  • Dust collector: +

Horizontal working table

  • Working table: Vacuum table
  • Working table width (X-axis): 1240 mm
  • Working table length (Y-axis): 2460 mm
  • Transmission way of X: Linear square rail guide
  • Transmission way of X: Linear square rail guide
  • Transmission way of Z.: Linear square rail guide
  • Driving units for X-axis: Ball screw
  • Driving units for Y-axis: Ball screw
  • Driving units for Z-axis: Ball screw

Working area

  • X-axis stroke: 1240 mm
  • Y-axis stroke: 2460 mm
  • Z-axis stroke: 200 mm

Speed

  • Max. working speed: 10 m/min
  • Max. travelling speed: 35 m/min

Power Supply

  • Drive: Servo-motor
  • Voltage: 380
  • Phase: Three-phase
  • Current frequency: 50

Overall dimensions

  • Overall length : 3800 mm
  • Overall width : 2200 mm
  • Overall height: 1850 mm
  • Weight: 2000 Kg
