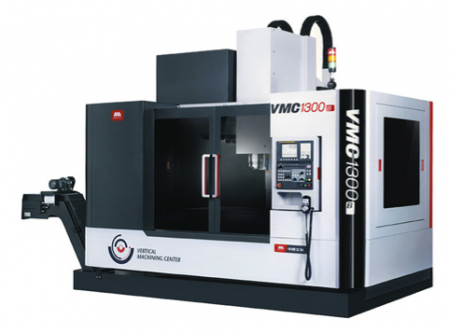

Vertical CNC Milling Center VMC1300B
  • Vertical CNC Milling Center VMC1300B

Vertical CNC Milling Center VMC1300B

Production country: China

Cost in place: Moscow

Выберите город:

14 482 318 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    SMTCL

  • Type

    Vertical CNC machining center

  • CNC

    Fanuc

  • Range of Spindle Speeds

    0 rpm — 8000 rpm

  • ATC type

    Arm type ATC

Similar goods

Описание:

General properties

  • Type: Vertical CNC machining center

Control unit

  • CNC: Fanuc
  • CNC type: 0i-MD

Spindle

  • Spindle axis orientation: Vertical
  • Range of Spindle Speeds: 0 rpm — 8000 rpm
  • Spindle Taper: BT40
  • Distance from spindle nose to table top: 150 mm — 850 mm

Additional

  • Positioning accuracy: 0.005 mm
  • Repeatability accuracy: 0.003 mm

Options

  • Coolant through spindle system: -

Horizontal working table

  • Working table length: 1400 mm
  • Working table width: 700 mm
  • Longitudinal (X-axis) travel of table: 1300 mm
  • Cross (Y-axis) travel of table: 700 mm
  • Vertical (Z-axis) travel of table: 700 mm
  • Rapid feed X-axis: 24 m/min
  • Rapid feed Y-axis: 24 m/min
  • Rapid feed Z-axis: 20 m/min
  • Feed speed: 0 mm/min — 10000 mm/min
  • Max. worktable load: 1000 Kg

T-slots of horizontal table

  • Number of T-slots: 5 pcs
  • T-slot width: 18 mm

Operating tools

  • ATC type: Arm type ATC
  • Tool taper: BT40
  • Max. tool diameter: 300 mm
  • Max. tool weight: 15 Kg
  • Tool changing time: 2.5 s

Power Supply

  • Total motor power: 15 kW

Overall dimensions

  • Overall length: 3500 mm
  • Overall width : 3232 mm
  • Overall height: 3361 mm
  • Weight: 11000 Kg
