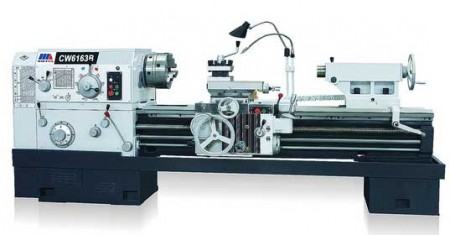

Horizontal metal lathe CW6163B/3000
  • Horizontal metal lathe CW6163B/3000

Horizontal metal lathe CW6163B/3000

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    SMTCL

  • Type

    Engine metalworking lathe

  • Distance between centers

    3000 mm

  • Swing over bed

    630 mm

  • Swing over cross slide

    350 mm

  • Range of spindle speeds (50Hz)

    8 rpm — 1000 rpm

  • Top slide travel

    200 mm

Similar goods

Описание:

General properties

  • Type: Engine metalworking lathe
  • with CNC: -

Throughtput

  • Distance between centers: 3000 mm
  • Swing over bed: 630 mm
  • Swing over cross slide: 350 mm
  • Max. cutting length: 3000 mm

Headstock

  • Taper of spindle bore (by Morse) : MT5
  • Spindle bore diameter: 104 mm
  • Range of spindle speeds (50Hz): 8 rpm — 1000 rpm
  • Step of spindle speeds: 18

Tailstock

  • Max. travel of tailstock quill: 250 mm
  • Taper of tailstock sleeve bore (by Morse) : MT5

Working area

  • Range of longitudinal feeds: 0.1 mm/rev. — 1.52 mm/rev.
  • Range of inch threads: 1 T.P.I. — 14 T.P.I.
  • Range of metric threads: 1 mm — 240 mm
  • Top slide travel: 200 mm
  • Bottom slide travel: 315 mm

Power Supply

  • Motor power: 11 kW
  • Voltage: 380 V
  • Phase: Three-phase

Overall dimensions

  • Overall length: 4700 mm
  • Overall width : 1380 mm
  • Overall height: 1720 mm
  • Weight: 5190 Kg
