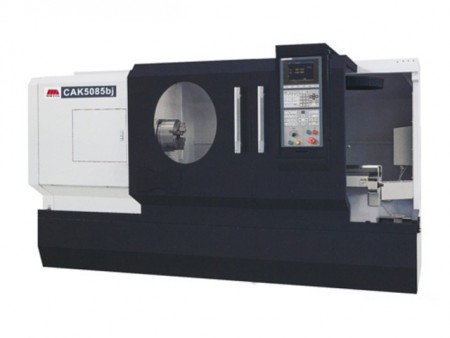

Horizontal metal CNC lathe CAK5085bj
  • Horizontal metal CNC lathe CAK5085bj

Horizontal metal CNC lathe CAK5085bj

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    SMTCL

  • Type

    Engine metalworking lathe

  • with CNC

    +

  • Distance between centers

    890 mm

  • Swing over bed

    500 mm

  • Swing over cross slide

    300 mm

  • Spindle bore diameter

    70 mm

  • Range of spindle speeds (50Hz)

    22 rpm — 2200 rpm

Similar goods

Описание:

Horizontal metal CNC lathe CAK5085bj

CAK series CNC lathes are with complete modeles and specifications, can be used in machining inside and outside, surfaces of shafts and discs, taper surfaces, arc surfaces, threads, and boring holes, teaming holes, ads well as machining noncircular curved surfaces. Different control systems and accessories are optional according to the requirements of customers.



General properties

  • Type: Engine metalworking lathe
  • with CNC: +

Throughtput

  • Distance between centers: 890 mm
  • Swing over bed: 500 mm
  • Swing over cross slide: 300 mm

Headstock

  • Spindle bore diameter: 70 mm
  • Range of spindle speeds (50Hz): 22 rpm — 2200 rpm

Tailstock

  • Max. travel of tailstock quill: 75 mm
  • Taper of tailstock sleeve bore (by Morse) : MT5
  • Tailstock center travel: 150 mm

Working area

  • X-axis travel: 250 mm
  • Z-axis travel: 850 mm

Power Supply

  • Motor power: 7.5 kW
  • Voltage: 380 V
  • Phase: Three-phase

Overall dimensions

  • Overall length: 3550 mm
  • Overall width : 2178 mm
  • Overall height: 2149 mm
  • Weight: 2300 Kg
