Universtal Tool Milling Machine X8132

Production country: China

Cost in place: Moscow

Выберите город:

3 077 252 руб.

Min. order qty 1 pcs

Основные характеристики

Type

Universal Milling Machines (Vertical + Horizontal)
Modification

Swivel head milling machine
Working table length

750 mm
Working table width

320 mm
Working table length

830 mm
Working table width

225 mm
Longitudinal (X-axis) travel

400 mm
Cross (Y-axis) travel

300 mm
Vertical (Z-axis) travel

390 mm
Spindle taper

ISO40
Range of Spindle Speeds

40 rpm — 2000 rpm
Main motor power

2.2 kW

Similar goods

Product information
Specification
List of equipment
Cross-sell goods

Описание:

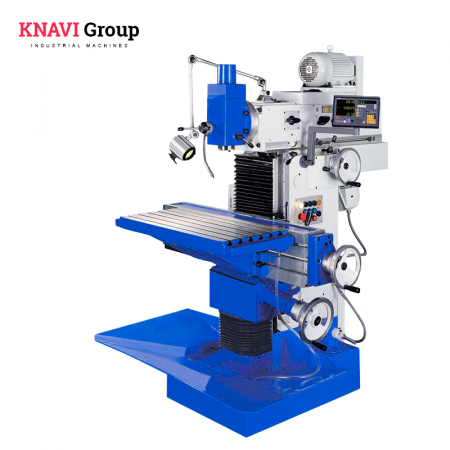

Universal Milling Machine X8140

This machine is a kind of universal machine. It is applied to various industries. Especially for tools, fixtures, molds or other complex shape parts processing in instrumentation and machinery manufacturing industry.Suitable for processing small and medium parts. The workpiece can be milled, drilled and bored in any coordinate direction. Accessories can be provided according to requirements to increase the versatility of the machine.Has high flexibility, high accuracy and high efficiency, the universal tool milling machines has a wide variety of applications, like drilling, milling and boring on tools, jigs,moulds and other complex jobs in instrument, workshops as well as training.

General properties

Type: Universal Milling Machines (Vertical + Horizontal)
Modification: Swivel head milling machine
Digital Unit: Digital Readout Unit

Spindle

Spindle axis orientation: Horizontal and verical orientation
Number of spindles: 2 spindles

Vertical spindle

Spindle taper: ISO40
Range of Spindle Speeds: 40 rpm — 2000 rpm
Number of Spindle Speeds: 12
Distance from spindle nose to table top: 50 mm — 450 mm
Vertical Head Tilt Angle (R&L): 90 °

Horizontal spindle

Spindle taper: ISO40
Range of Spindle Speeds: 40 rpm — 2000 rpm
Number of Spindle Speeds: 12
Distance from spindle axis to table surface: 85 mm — 485 mm

Additional

Spindle feed: Automatic spindle feed

Horizontal working table

Feed of table: Power feed X-axis, Power feed Y-axis, Power feed Z-axis, Manual feed X-axis, Manual feed Y-axis, Manual feed Z-axis
Working table length: 750 mm
Working table width: 320 mm
Max.load of table: 150 Kg

Vertical working table

Working table length: 830 mm
Working table width: 225 mm

T-slots of horizontal table

Number of T-slots: 5 pcs
T-slot width: 14 mm
T-slot pitch: 63 mm

T-slots of vertical table

Number of T-slots: 3 pcs
T-slot width: 14 mm
T-slot pitch: 63 mm

Working area

Longitudinal (X-axis) travel : 400 mm
Cross (Y-axis) travel : 300 mm
Vertical (Z-axis) travel: 390 mm
Longitudinal (X-axis) rapid speed: 10 mm/min — 380 mm/min
Cross (Y-axis) rapid speed: 10 mm/min — 380 mm/min
Vertical (Z-axis) rapid speed: 10 mm/min — 380 mm/min
Longitudinal (X-axis) rapid speed : 1200 mm/min
Cross (Y-axis) rapid speed : 1200 mm/min
Vertical (Z-axis) rapid speed: 1200 mm/min
