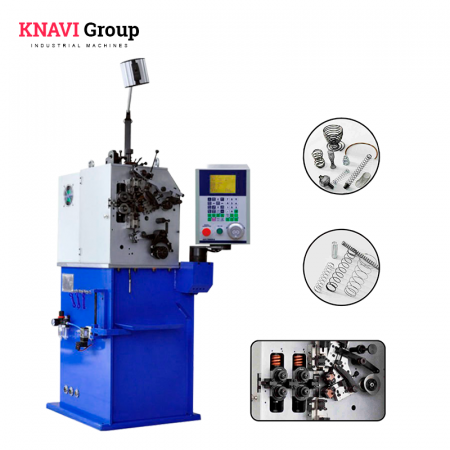

Spring Coiling Machine CNC2208
  • Spring Coiling Machine CNC2208

Spring Coiling Machine CNC2208

Production country: China

Cost in place: Moscow

Выберите город:

1 847 727 руб.

Min. order qty 1 pcs

Основные характеристики

  • with CNC

    +

  • Number of axes

    2 pcs

  • Types of manufactured springs

    Tension spring making, Compression spring making

  • Max. output of springs

    500 pcs/min

  • Wire diameter

    0.15 mm — 0.8 mm

  • Max. outer spring diameter

    20 mm

  • Cam motor power

    1 kW

Similar goods

Описание:

Spring Coiling Machine CNC2208

CNC2208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axes can act independently of synchronously by build the program.

Description

  • The compression spring machine pitch, outside diameter and cutter are driven by the cam motors. The wire feeding is controlled by an independent motor.
  • The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
  • Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.



General properties

  • with CNC: +
  • Number of axes: 2 pcs
  • Number of CNC axes: 2 pcs
  • Types of manufactured springs: Tension spring making, Compression spring making

Throughtput

  • Max. output of springs: 500 pcs/min

Technical Parameters

  • Wire diameter: 0.15 mm — 0.8 mm
  • Max. outer spring diameter: 20 mm
  • Wire Feeding Rollers Groups: 2 pcs

Power Supply

  • Cam motor power: 1 kW
  • Wire feeding motor power: 1 kW
  • Voltage: 220

Overall dimensions

  • Machine overall size : 870x780x1600 mm
  • Weight: 350 Kg
