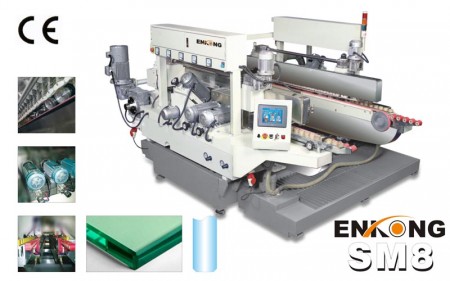

Glass straight-line double edging machine SM8
  • Glass straight-line double edging machine SM8

Glass straight-line double edging machine SM8

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    ENKONG

  • Type

    Double side glass edging machine

  • Min. length of glass sheet

    150 mm

  • Min. width of glass sheet

    150 mm

  • Max. width of glass sheet

    1500 mm

  • Glass sheet thickness

    3 mm — 19 mm

  • Quantity of Spindles

    8 pcs

Similar goods

Описание:

M8 is available in processing glass with thickness 3-12mm, which is produced in 8spindles (4 peripheral wheels per side) rough, fine grinding; polishing can be finished at a time. Adopt PLC for controlling. The SM8 are also suitable for small production batches.

Mainly parameter:

  • Dimension of the whole machine (L*W*H) (mm):3270*3240*1900
  • Working table height (mm): 850
  • The Min. area of processing glass (mm2): 150*150
  • Processing glass width (mm): 150~1500
  • Processing glass thickness (mm): 3~19
  • Processing glass Diagonal error (mm):2m*2m≤1
  • Processing glass parallelism error (mm) ≤0.5/2m
  • The speed of transmission of processing glass (M/Min): 0.5-4.5M/Min.
  •  (According to the thickness of glass to adjust)
  • Power (KW): 21.7
  • Voltage (V): 380
  • Frequency (Hz): 50
  • Air pressure (MPA):0.4-0.8
  • Weight (Kg):3500

General properties

  • Type: Double side glass edging machine

Spindle

  • Quantity of Spindles: 8 pcs

Technical Parameters

  • Min. length of glass sheet : 150 mm
  • Min. width of glass sheet : 150 mm
  • Max. width of glass sheet : 1500 mm
  • Glass sheet thickness: 3 mm — 19 mm
  • Desktop height: 850 mm
  • Processing speed: 0.5 m/min — 4.5 m/min

Power Supply

  • Motor power: 21.7 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 3270 mm
  • Overall width: 3240 mm
  • Overall height: 1900 mm
  • Weight: 3500 Kg
