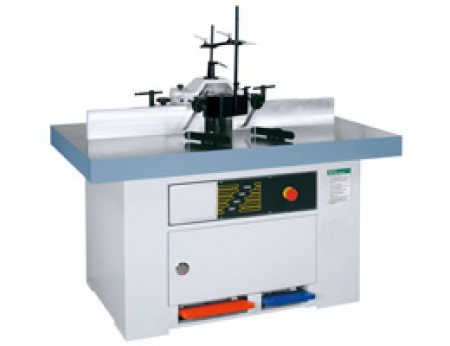

Spindle shaper LS-800M
  • Spindle shaper LS-800M

Spindle shaper LS-800M

Production country: Taiwan

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Type

    Single-spindle moulder

  • Spindle Speed

    3000 / 4500 / 7500 / 10000 rpm

  • Working table length

    1550 mm

  • Working table width

    920 mm

  • Spindle size

    25.4 mm

  • Spindle stroke

    170 mm

Similar goods

Описание:

LS-800M

  • Fixed table
  • Table area 36-1/2" x 61" (920 mm x 1,550 mm)
  • 10 HP motor (15 HP optional)
  • Foot spindle lock
  • Foot spindle brake

General properties

  • Type: Single-spindle moulder

Spindle

  • Spindle Speed: 3000 / 4500 / 7500 / 10000 rpm
  • Spindle size: 25.4 mm
  • Spindle stroke: 170 mm
  • Additional spindle diameters: 30mm, 35mm, 40mm

Horizontal working table

  • Working table length: 1550 mm
  • Working table width: 920 mm
  • Worktable height: 900 mm
  • Table Opening Diameter: 100 mm
  • Table Insert Opening Diameters : 170mm, 210mm, 260mm, 336mm

Sliding table

  • Sliding table: -

Power Supply

  • Phase: Single-phased
  • Current frequency: 50
  • Voltage: 220
  • Motor power: 7.35 kW

Overall dimensions

  • Overall length : 1651 mm
  • Overall width : 1065 mm
  • Overall height: 1320 mm
  • Weight: 720 Kg
