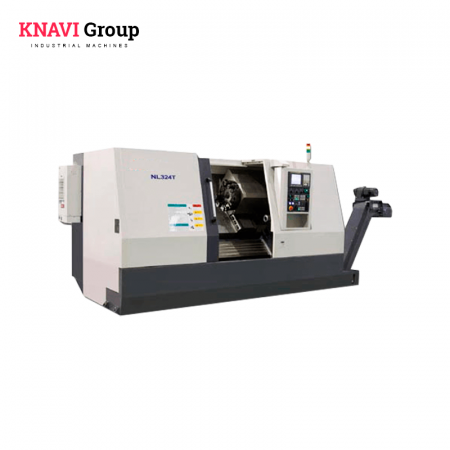

CNC Horizontal Turning Center NL324T

Production country: China

Cost in place: Moscow

Выберите город:

14 106 052 руб.

Min. order qty 1 pcs

Основные характеристики

Brand

NEWAY
Type

Horizontal CNC Turning Lathes
Functions

Turning, Boring, Reaming, Tapping, Drilling, Milling, Slotting
Max. cutting diameter length

1000 mm
Swing over bed

570 mm
Swing over cross slide

400 mm
Max. size of drilling

Φ16×0.2 mm
Max. size of threading

M14×2/M20×1.5 mm
Max. size of slotting

Φ20×12×40 mm
Range of spindle speed

0 rpm — 4000 rpm
Main power

11 kW

Описание:

Horizontal CNC Turning Center NL324T

The machine is of semi shut wreath and simultaneous triaxial operation with indexing C axis and live turret. The machine is good for high speed cutting, milling, drilling and threading with large quantity and high accuracy. Especially for future vehicle, electronic, aerospace and millitary industries.

General properties

Type: Horizontal CNC Turning Lathes
Functions: Turning, Boring, Reaming, Tapping, Drilling, Milling, Slotting
CNC: Fanuc
with CNC: -

Throughtput

Max. cutting diameter length: 1000 mm
Swing over bed: 570 mm
Swing over cross slide: 400 mm
Max. cutting diameter: 320 mm
Max. size of drilling: Φ16×0.2 mm
Max. size of threading: M14×2/M20×1.5 mm
Max. size of slotting: Φ20×12×40 mm

Headstock

Spindle nose: A2-6
Spindle bore diameter: 65 mm
Range of spindle speed: 0 rpm — 4000 rpm

Tailstock

Max. travel of tailstock quill: 100 mm
Tailstock quill diameter: 100 mm
Taper of tailstock sleeve bore (by Morse) : КМ5

Additional

X-axis positioning: 0.008 mm
Z-axis positioning: 0.008 mm
C-axis positioning: 51 ’
X-axis repositioning: 0.004 mm
Z-axis repositioning: 0.004 mm
C-axis repositioning: 20 ’

Working area

X-axis travel: 1100 mm
Z-axis travel: 235 mm
Rapid traverse in X-axis: 24 m/min
Rapid traverse in Z-axis: 30 m/min
Lathe chuck: 254 mm
