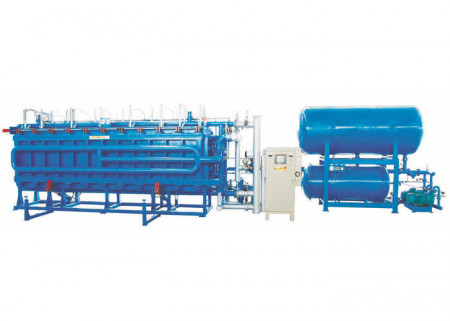

1.Machine structure:
a. The machine mold is welded onto strong rectangular tubes and steel plates which ensure high
strength for the additional safety of the machine.
b. All block mold frames are heat-treated to release the welding stress, so that the frames will
not deform.
c. After heat treatment, all mold frames are processed through sand blasting treatment to keep
the rust away,after that under coat and fishing coat are greatly improved, for anticorrosion
performance and long life.
d. Adopts three German gauges and safety valve for multi-safety protection. The machine will be
tested by water pressure and steam (many steps), to ensure the machine is more stable and
safe.
② Steam system: Three ball valves, compared to one big steam valve control system, saves 20%
steam, with ISO-standard butterfly valves, which greatly improves stability and increases
machine life.
③ Control System;
a. Adopts PLC(Mitsubishi) and touch screen(Schneider) for an easy operation.
b. Equipped material level sensor to control the filling. The block cooling is controlled by foam
pressure sensor. Thewhole procedure for filling, heating, cooling will be controlled
automatically by PLC.
