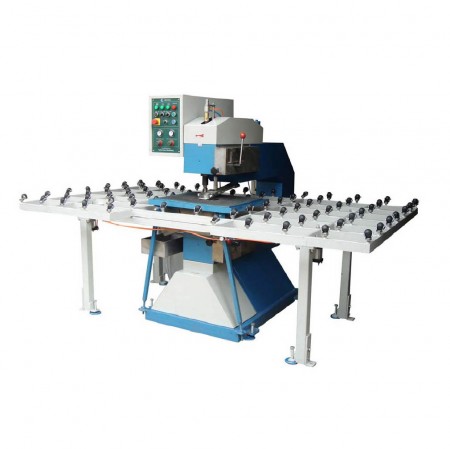

Glass Horizontal Drilling Machine GHD-130AL
  • Glass Horizontal Drilling Machine GHD-130AL

Glass Horizontal Drilling Machine GHD-130AL

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    XINOLOGY

  • Drilling Hole Diameter

    4 mm — 130 mm

  • Glass sheet thickness

    3 mm — 20 mm

  • Top Drill Spindle Feeding

    Automatic Feeding of Drill Spindle

  • Bottom Drill Spindle Feeding

    Automatic Feeding of Drill Spindle

Similar goods

Описание:

GHD-H-130AL is an advance glass driller with laser positioning system for glass holes registration with both automatic top and bottom dirlling spindles.

Features

  • Top & bottom drilling spindles of GHD-H-130AL works automatically
  • Just one button, bottom spindle starts then top spindle after
  • Laser device helps glass holes registration
  • Drilled glass core automatically ejected & pushed to a collector bin
  • Drill hole centre to "C" stands up to 1000 mm
  • Proper speed with adequate control ensures drill holes free of burr
  • Core drill center water cooling

Throughtput

  • Drilling Hole Diameter: 4 mm — 130 mm
  • Max. length of glass sheet: 2600 mm
  • Max. width of glass sheet : 1400 mm
  • Glass sheet thickness: 3 mm — 20 mm

Spindle

  • Drilling spindles: Top drilling spindle, Bottom drilling spindle
  • Top Drill Spindle Feeding: Automatic Feeding of Drill Spindle
  • Bottom Drill Spindle Feeding: Automatic Feeding of Drill Spindle
  • Spindle speed: 930 rpm — 1400 rpm

Additional

  • Drill Holes Registration: Laser Drill Holes Registration

Horizontal working table

  • Floating wortable size: 2600x1400 mm
  • Working table height : 1000 mm

Power Supply

  • Motor power: 2.2 kW
  • Voltage: 380

Overall dimensions

  • Overall length : 2800 mm
  • Overall width: 1900 mm
  • Overall height: 2100 mm
  • Weight: 950 mm
