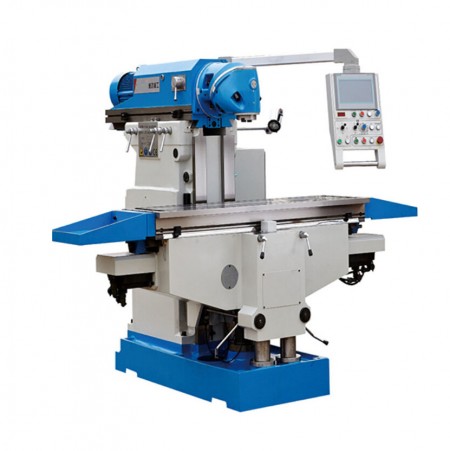

Ram type milling machine X5750A
  • Ram type milling machine X5750A

Ram type milling machine X5750A

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Weida

  • Type

    Vertical milling machine

  • Spindle axis orientation

    Only verical spindle orientation

  • Spindle taper

    ISO40

  • Range of Spindle Speeds

    53 rpm — 1800 rpm

Similar goods

Описание:

X5750A Vertical Rotary Head Milling Machine:
1.This milling machine is with universal milling head which can swivel 360 degrees.
2.Ram can be movable forward and backward.
3.The machine is with dovetail guideway.

General properties

  • Type: Vertical milling machine
  • Modification: Swivel head milling machine
  • Digital Unit: Digital Readout Unit

Spindle

  • Spindle axis orientation: Only verical spindle orientation
  • Number of spindles: 1 spindle

Vertical spindle

  • Spindle taper: ISO40
  • Range of Spindle Speeds: 53 rpm — 1800 rpm
  • Number of Spindle Speeds: Variable
  • Distance from spindle nose to table top: 40 mm — 510 mm
  • Distance from spindle axis to column surface: 70 mm — 670 mm
  • Vertical Head Tilt Angle (R&L): 360 °

Horizontal working table

  • Working table length: 1635 mm
  • Working table width: 500 mm
  • Max.load of table: 1500 Kg

T-slots of horizontal table

  • Number of T-slots: 5 pcs
  • T-slot width: 18 mm

Working area

  • Longitudinal (X-axis) travel : 1300 mm
  • Cross (Y-axis) travel : 470 mm
  • Longitudinal (X-axis) rapid speed: 10 mm/min — 1200 mm/min
  • Vertical (Z-axis) rapid speed: 5 mm/min — 600 mm/min
  • Longitudinal (X-axis) rapid speed : 2500 mm/min
  • Vertical (Z-axis) rapid speed: 1200 mm/min

Power Supply

  • Main motor power: 7.5 kW

Overall dimensions

  • Overall size: 2000x2100x2200 mm
  • Weight: 3500 Kg
