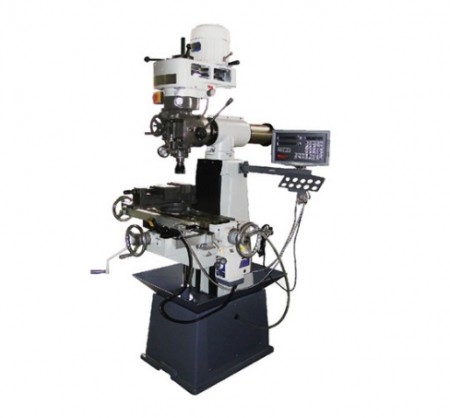

Vertical turret milling machine YES-830-A3
  • Vertical turret milling machine YES-830-A3
  • Vertical turret milling machine YES-830-A3
  • Vertical turret milling machine YES-830-A3

Vertical turret milling machine YES-830-A3

Production country: Taiwan

Cost in place: Moscow

Выберите город:

699 043 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Y.E.S.

  • Modification

    Swivel head milling machine

  • Working table length

    760 mm

  • Working table width

    205 mm

  • Longitudinal (X-axis) travel

    470 mm

  • Spindle axis orientation

    Only verical spindle orientation

  • Spindle taper

    MT3

  • Range of Spindle Speeds

    90 rpm — 2780 rpm

  • Distance from spindle nose to table top

    65 mm — 480 mm

Similar goods

Описание:

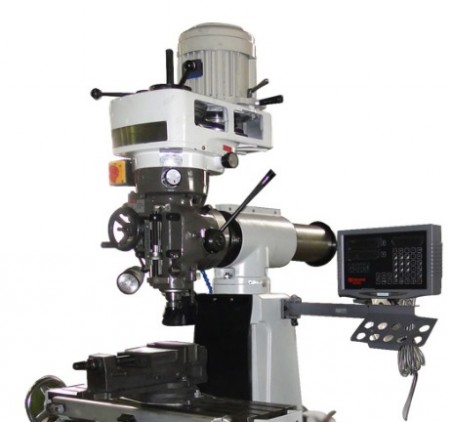

Vertical turret milling machine YES-830-A3

  • Adjustable table stops for accurate stops for cuts and repeatability
  • Head tilts to 90° both ways. 360 ° rotation on horizontal surface
  • Scrapping technology X,Y & Z. (The scrap technology is considered as the fundamental of the accuracy of precision machine tools)
  • Hardened & ground column and knee slideways
  • Solid cast iron construction throughout.
  • Spindle stop with micro-adjustable setting.
  • Chrome plated precision ground quill.
  • Heavy-duty saddle supports full width of table
  • High precision ground vertical and cross ways.
  • Class 7 spindle bearings.
  • Lower noise and convenient operation.
  • Table locks for high rigidity.
  • Adjustable travel stops on X & Y.
  • Fold up safety handles.
  • Dovetail ways X,Y & Z.
  • Adjustable gibs.
  • Fine down feed on quill on table.


General properties

  • Type: Vertical milling machine
  • Modification: Swivel head milling machine
  • Digital Unit: NC type

Spindle

  • Spindle axis orientation: Only verical spindle orientation
  • Number of spindles: 1 spindle

Vertical spindle

  • Spindle taper: MT3
  • Range of Spindle Speeds: 90 rpm — 2780 rpm
  • Number of Spindle Speeds: 8
  • Spindle auto feeding: 0.04/0.08/0.15
  • Distance from spindle nose to table top: 65 mm — 480 mm
  • Vertical Head Tilt Angle (R&L): 90 °

Additional

  • Spindle feed: Automatic spindle feed

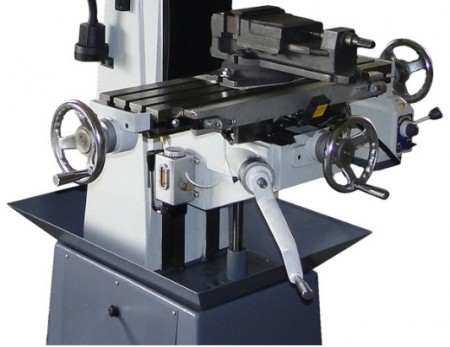

Horizontal working table

  • Feed of table: Power feed Z-axis, Manual feed X-axis, Manual feed Y-axis
  • Working table length: 760 mm
  • Working table width: 205 mm
  • Max.load of table: 150 Kg

T-slots of horizontal table

  • Number of T-slots: 3 pcs

Working area

  • Longitudinal (X-axis) travel : 470 mm
  • Cross (Y-axis) travel : 200 mm
  • Vertical (Z-axis) travel: 455 mm

Power Supply

  • Main motor: Stepper motor
  • Main motor power: 1.5 kW

Overall dimensions

  • Overall size: 1100*1000*2000 mm
  • Weight: 540 Kg
