Vertical Milling Machine YES-830

Production country: Taiwan

Cost in place: Moscow

Выберите город:

573 885 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Y.E.S.

  • Type

    Vertical milling machine

  • Modification

    Swivel head milling machine

  • Working table length

    760 mm

  • Working table width

    205 mm

  • Range of Spindle Speeds

    230 rpm — 3200 rpm

  • Number of Spindle Speeds

    9

  • Main motor power

    1.1 kW

Similar goods

Описание:

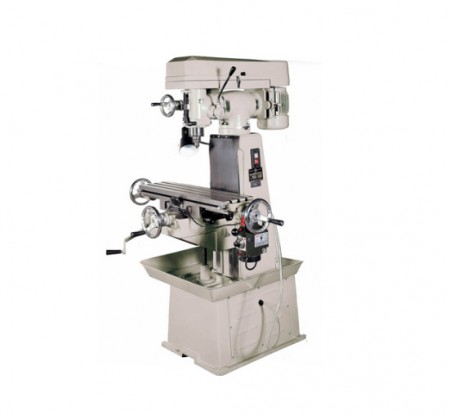

Knee-type vertical milling machine YES-830

  • Adjustable travel stops on X, Y, & Z.
  • Fold up safety handles.
  • Head tilts to 90° deg; both ways. 360° deg; rotation on horizontal surface.
  • Lower noise and convenient operation.
  • Table locks for high rigidity.
  • Solid cast iron construction throughout machine.
  • Spindle stop with micro-adjustable setting.
  • High precision ground vertical and cross ways

Standard Accessories:

  • Tool Box and Handles
  • Rubber shield onto front & rear Saddle
  • For/Rev switch
  • One - Shot Oil Lubrication
  • Drawbar

Optional:

  • Power feed (X or Y)
  • Chip Tray
  • Coolant system+chip tray
  • Working Light-24V Quartz lamp
  • CE Spindle guard accessory
  • 2 Axis DRO US$345
  • 3 Axis DRO US$565
  • NT40 spindle (A3,H86VS&H86EVS ONLY)
  • 16 speeds-spindle speed (A3)
  • Single phase motor-220V (A3 & A3VS only)



General properties

  • Type: Vertical milling machine
  • Modification: Swivel head milling machine
  • Digital Unit: No digital control

Spindle

  • Spindle axis orientation: Only verical spindle orientation
  • Number of spindles: 1 spindle

Vertical spindle

  • Spindle taper: MT3
  • Range of Spindle Speeds: 230 rpm — 3200 rpm
  • Number of Spindle Speeds: 9
  • Distance from spindle nose to table top: 65 mm — 480 mm
  • Vertical Head Tilt Angle (R&L): 90 °
  • Head swiveling angle: 360 °

Additional

  • Spindle feed: Manual spindle feed

Horizontal working table

  • Feed of table: Manual feed X-axis, Manual feed Y-axis, Manual feed Z-axis
  • Working table length: 760 mm
  • Working table width: 205 mm

T-slots of horizontal table

  • Number of T-slots: 3 pcs

Working area

  • Longitudinal (X-axis) travel : 470 mm
  • Cross (Y-axis) travel : 200 mm
  • Vertical (Z-axis) travel: 455 mm

Power Supply

  • Main motor: Stepper motor
  • Main motor power: 1.1 kW

Overall dimensions

  • Overall size: 1120x1120x1950 mm
  • Weight: 450 Kg
