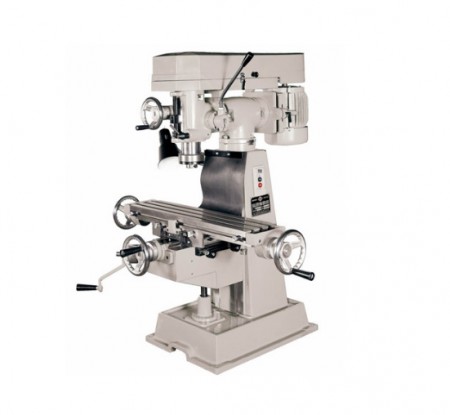

Vertical Milling Machine YES-626
  • Vertical Milling Machine YES-626

Vertical Milling Machine YES-626

Production country: Taiwan

Cost in place: Moscow

Выберите город:

453 386 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Y.E.S.

  • Type

    Vertical milling machine

  • Modification

    Swivel head milling machine

  • Working table length

    600 mm

  • Working table width

    152 mm

  • Range of Spindle Speeds

    230 rpm — 2500 rpm

  • Number of Spindle Speeds

    9

  • Main motor power

    0.75 kW

Similar goods

Описание:

Knee-type vertical milling machine YES-626

  • Adjustable travel stops on X, Y, & Z.
  • Fold up safety handles.
  • Head tilts to 90° deg; both ways. 360° deg; rotation on horizontal surface.
  • Lower noise and convenient operation.
  • Table locks for high rigidity.
  • Solid cast iron construction throughout machine.
  • Spindle stop with micro-adjustable setting.
  • High precision ground vertical and cross ways

Standard Accessories:

  • Tool Box and Handles
  • Rubber shield onto front & rear Saddle
  • Mill / Drill
  • For/Rev switch
  • One - Shot Oil Lubrication
  • Drawbar

Optional:

  • Power feed (X or Y)
  • Coolant system (a stand is necessary)
  • Working Light-24V Quartz lamp
  • Spindle guard accessory
  • Enclose Stand+Chip Tray
  • 2 Axis DRO
  • 3 Axis DRO
  • 1 machine by 1 crate
  • MT3 spindle

General properties

  • Type: Vertical milling machine
  • Modification: Swivel head milling machine
  • Digital Unit: No digital control

Spindle

  • Spindle axis orientation: Only verical spindle orientation
  • Number of spindles: 1 spindle

Vertical spindle

  • Spindle taper: MT3
  • Range of Spindle Speeds: 230 rpm — 2500 rpm
  • Number of Spindle Speeds: 9
  • Distance from spindle nose to table top: 0 mm — 345 mm
  • Vertical Head Tilt Angle (R&L): 90 °
  • Head swiveling angle: 360 °

Additional

  • Spindle feed: Manual spindle feed

Horizontal working table

  • Feed of table: Manual feed X-axis, Manual feed Y-axis, Manual feed Z-axis
  • Working table length: 600 mm
  • Working table width: 152 mm

T-slots of horizontal table

  • Number of T-slots: 3 pcs

Working area

  • Longitudinal (X-axis) travel : 370 mm
  • Cross (Y-axis) travel : 150 mm
  • Vertical (Z-axis) travel: 325 mm

Power Supply

  • Main motor: Stepper motor
  • Main motor power: 0.75 kW

Overall dimensions

  • Overall size: 1015x1070x1450 mm
  • Weight: 260 Kg
