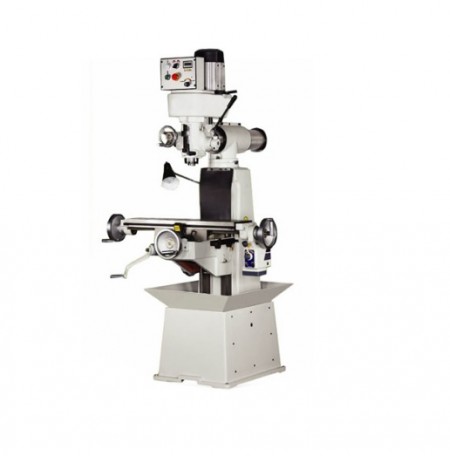

Vertical turret milling machine YES-830i-A2
  • Vertical turret milling machine YES-830i-A2

Vertical turret milling machine YES-830i-A2

Production country: Taiwan

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 1 pcs

Основные характеристики

  • Brand

    Y.E.S.

  • Modification

    Swivel head milling machine

  • Working table length

    760 mm

  • Working table width

    205 mm

  • Longitudinal (X-axis) travel

    470 mm

  • Spindle axis orientation

    Only verical spindle orientation

  • Spindle taper

    MT3

  • Range of Spindle Speeds

    200 rpm — 2250 rpm

  • Distance from spindle nose to table top

    65 mm — 480 mm

Similar goods

Описание:

Vertical turret milling machine YES-830i-A2

  • 1-1/2 HP, 220V, three-phase motor.
  • Head slides in and out, swivels, and tilts left-to-right, enabling extremely versatile operations.
  • Variable speed frequency drive allows speeds from 200 to 2250 RPM.
  • Runs on single-phase power.
  • Features hardened and precision ground leadscrews, dovetail ways, turret-style column, and fine downfeed on quill.
  • Convenient one-shot lubrication system.
  • Cast iron construction throughout turret milling machines.



General properties

  • Type: Vertical milling machine
  • Modification: Swivel head milling machine
  • Digital Unit: No digital control

Spindle

  • Spindle axis orientation: Only verical spindle orientation
  • Number of spindles: 1 spindle

Vertical spindle

  • Spindle taper: MT3
  • Range of Spindle Speeds: 200 rpm — 2250 rpm
  • Number of Spindle Speeds: Variable
  • Distance from spindle nose to table top: 65 mm — 480 mm
  • Vertical Head Tilt Angle (R&L): 90 °

Additional

  • Spindle feed: Automatic spindle feed

Horizontal working table

  • Feed of table: Power feed Z-axis, Manual feed X-axis, Manual feed Y-axis
  • Working table length: 760 mm
  • Working table width: 205 mm

T-slots of horizontal table

  • Number of T-slots: 3 pcs

Working area

  • Longitudinal (X-axis) travel : 470 mm
  • Cross (Y-axis) travel : 200 mm
  • Vertical (Z-axis) travel: 460 mm

Power Supply

  • Main motor: Inverter motor
  • Main motor power: 1.1 kW

Overall dimensions

  • Overall size: 1100*1100*2000 mm
  • Weight: 500 Kg
