3-axis Spring Forming Machine CNC35
  • 3-axis Spring Forming Machine CNC35

3-axis Spring Forming Machine CNC35

Production country: China

Основные характеристики

  • with CNC

    +

  • Number of axes

    3 pcs

  • Types of manufactured springs

    Torsional spring making, Tension spring making, Compression spring making

  • Max. output of springs

    75 pcs/min

  • Wire diameter

    0.8 mm — 3.5 mm

  • Cam motor power

    5.5 kW

Similar goods

Описание:

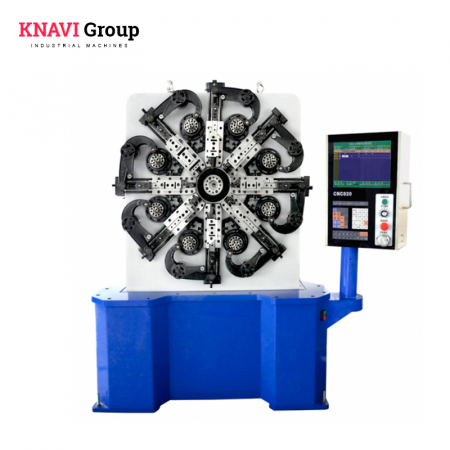

CNC Spring Forming Machine CNC35

  • 1. GH-CNC35 spring forming machine consist of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
  • 2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally three groups.
  • 3. GH-CNC35 spring machine is equipped with ADT-CNC820 spring machine controller. The control system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
  • 4. The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can control direction action or designated moves back and forth.
  • 5. Optional accessories: Cutting tool, rolling axis, spinner safety door.
  • 6. It is a universal spring machine, can make compression spring, torsion spring, coiling spring and wire forms and etc

General properties

  • with CNC: +
  • Number of axes: 3 pcs
  • Number of CNC axes: 3 pcs
  • Types of manufactured springs: Torsional spring making, Tension spring making, Compression spring making

Throughtput

  • Max. output of springs: 75 pcs/min

Technical Parameters

  • Wire diameter: 0.8 mm — 3.5 mm

Power Supply

  • Cam motor power: 5.5 kW
  • Wire feeding motor power: 1 kW
  • Voltage: 380

Overall dimensions

  • Machine overall size : 1900*1005*1900 mm
  • Weight: 1800 Kg
