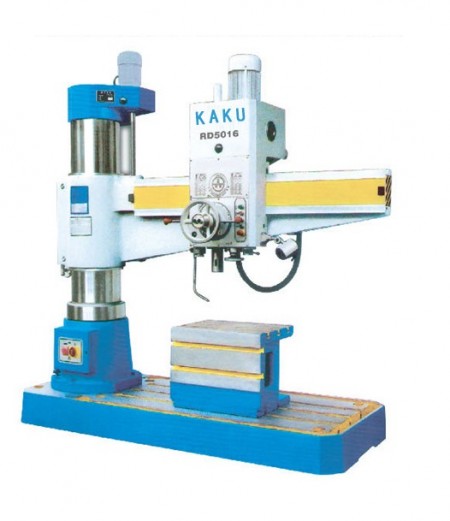

Radial Drilling Machine RD5016
  • Radial Drilling Machine RD5016

Radial Drilling Machine RD5016

Production country: China

Cost in place: Moscow

Выберите город:

Цена по запросу

Min. order qty 3 pcs

Основные характеристики

  • Max. drilling diameter (steel)

    50 mm

  • Spindle speeds range

    25 rpm — 2000 rpm

  • Spindle travel

    315 mm

Similar goods

Описание:

Radial Drilling Machine RD5016

  • Protection design for limitary satety is utilized in all transmission section.
  • All controls centralized on the headstock for easy operation and change.
  • Main parts are made by machine center with high precison and efficiency.
  • Integrating technology for casting parts is excellent, ensuring high quality of material for basic parts.
  • Spindle parts are made by special high quality steel, heat treatment to be made by first class equipments,ensuring high strength and durabililty.
  • Ground gears inside, ensuring high precision and low noise.· Protection design for limitary satety is utilized in all transmission section.




General properties

  • with CNC: -

Throughtput

  • Max. drilling diameter (steel): 50 mm

Spindle

  • Spindle speeds range: 25 rpm — 2000 rpm
  • Spindle speed step: 16 pcs
  • Spindle travel: 315 mm
  • Number of spindle feeds: 0.04 mm/r — 3.2 mm/r
  • Distance from spindle nose to table top: 320 mm — 1220 mm
  • Distance from spindle nose to column: 350 mm — 1600 mm

Horizontal working table

  • Worktable length: 630 mm
  • Worktable width: 500 mm
  • Worktable height: 500 mm
  • Base lenght: 2400 mm
  • Base width: 1000 mm

Power Supply

  • Total motor power: 5.5 kW

Overall dimensions

  • Overall length: 2600 mm
  • Overall width : 1120 mm
  • Overall height: 2600 mm
  • Weight: 2500 Kg
