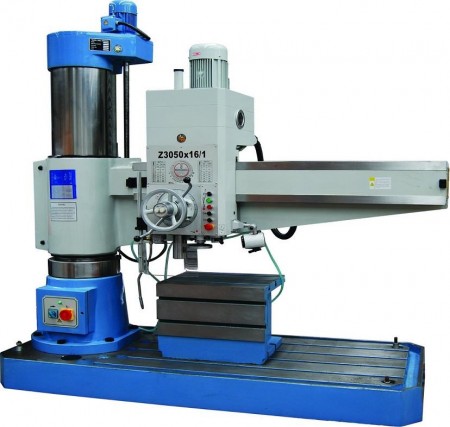

Radial Drilling Machine Z3050X16/1
  • Radial Drilling Machine Z3050X16/1

Radial Drilling Machine Z3050X16/1

Production country: China

Cost in place: Moscow

Выберите город:

1 755 830 руб.

Min. order qty 1 pcs

Основные характеристики

  • Brand

    WMT

  • Max. drilling diameter (steel)

    50 mm

  • Spindle speeds range

    25 rpm — 2000 rpm

  • Spindle travel

    315 mm

  • Total motor power

    5.5 kW

  • Weight

    3500 Kg

Similar goods

Описание:

General properties

  • with CNC: -

Throughtput

  • Max. drilling diameter (steel): 50 mm

Spindle

  • Spindle speeds range: 25 rpm — 2000 rpm
  • Spindle speed step: 16 pcs
  • Spindle travel: 315 mm
  • Taper of spindle bore: MT5
  • Number of spindle feeds: 0.04 mm/r — 3.2 mm/r
  • Distance from spindle nose to table top: 320 mm — 1220 mm
  • Distance from spindle nose to column: 350 mm — 1600 mm

Horizontal working table

  • Worktable length: 630 mm
  • Worktable width: 500 mm
  • Worktable height: 500 mm
  • Base lenght: 2400 mm
  • Base width: 1000 mm

Power Supply

  • Total motor power: 5.5 kW
  • Motor power of spindle: 4 kW

Overall dimensions

  • Overall length: 2480 mm
  • Overall width : 1040 mm
  • Overall height: 2750 mm
  • Weight: 3500 Kg
